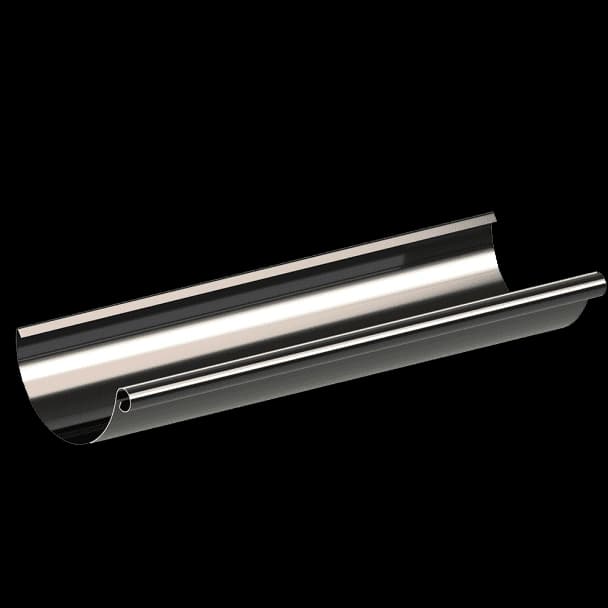

Gutter
The half-round channel that collects runoff along the eave.

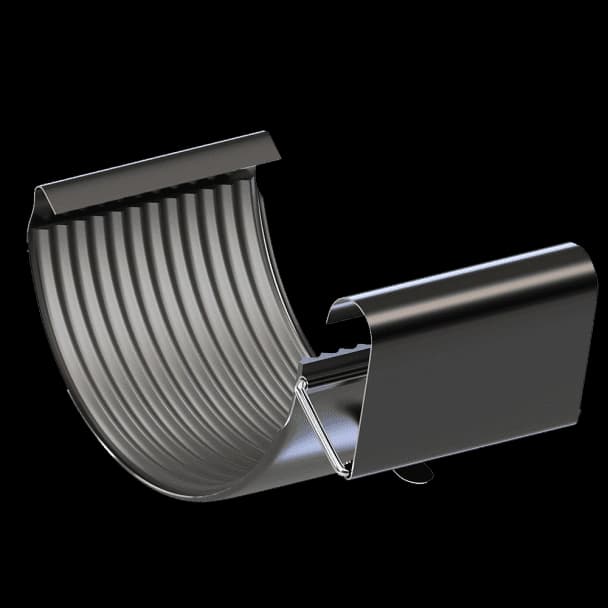

The gutter receives water from the roof and carries it toward an outlet. Straight sections are joined with connectors and held by brackets. Size, outlet placement and the fall of each run are planned around the roof and its drainage needs.
Confirm system size, finish and quantities with Highland before ordering.
Gutter — dimensions
Match the letters in the drawing to the measurements below. System numbers identify the nominal size; use the listed measurements for the part itself.
| System | W | Length |
|---|---|---|
| 125 | 120 mm | 3 & 4 m |
| 130 | 125 mm | 3 & 4 m |
| 150 | 151 mm | 3 & 4 m |
Dimensions are in millimetres unless marked otherwise. Confirm the selected size and adjoining fittings with Highland before ordering.
Choosing the right fitting
Describe the existing roofline or drainage connection and the fitting you need. Fixing surfaces and adjoining components help establish the appropriate option.
The 3D view illustrates the component’s form. Use the published dimensions and installation instructions for the actual work.
Part of a coordinated system.
The eavestrough system is modular and jointed. Gutters, corners and downpipes connect through fittings selected to work together.
The steel eavestrough system carries a 40-year warranty from the manufacturer. Highland’s 5-year workmanship warranty is separate. Ask for the written terms and confirm the cover for your chosen components, including specialist accessories.
