Panel profile
Mont Blanc
A fine-grained, low-relief profile that keeps a roof visually quiet rather than making it a feature.
Profile details

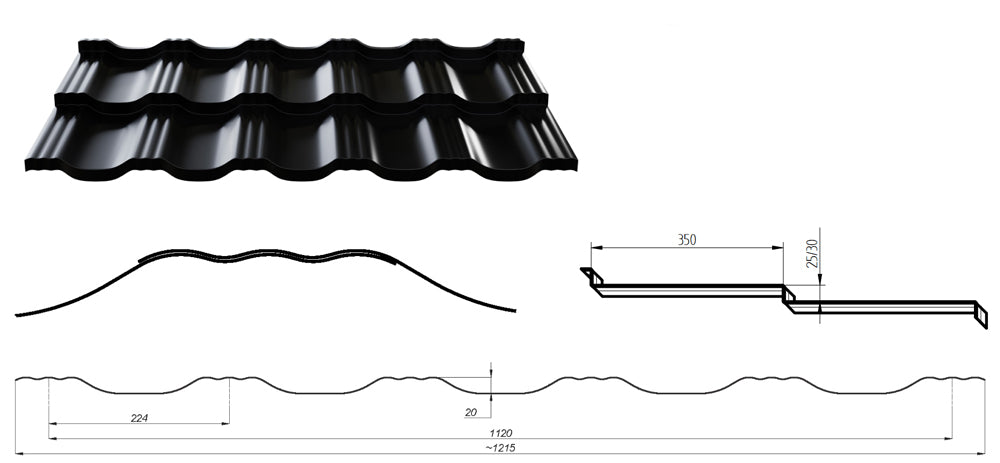

Drawings & dimensions
Explore the Mont Blanc profile. Effective cover width is the width each panel covers after the side overlap.
| Measurement | mm | inches ≈ |
|---|---|---|
| Overall width | ≈ 1,215 | 47.83 |
| Effective cover width | 1,120 | 44.09 |
| Steel thickness | 0.5 | 0.020 |
| Rib pitch | 224 | 8.82 |
| Step height options | 25 / 30 | 0.98 / 1.18 |
| Profile height | 20 | 0.79 |
| Module length | 350 | 13.78 |
| Minimum sheet length | 720 | 28.35 |
| Maximum sheet length | 5,970 | 235.04 |
Inch values are approximate conversions. Confirm the profile, sheet length and selected variant with Highland for your project.
Available in 8 colours
Black
RAL 9005
Blue Grey
RAL 7016
Chocolate
RAL 8017

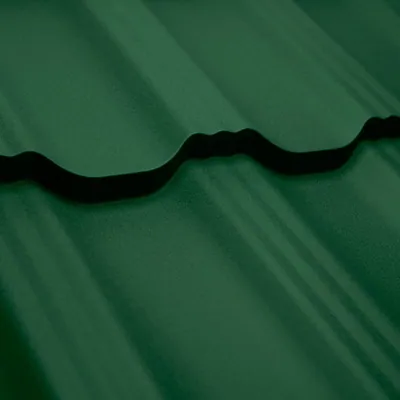

Green
RAL 6020
Grey
RAL 7024
Mocha Brown
RAL 8019

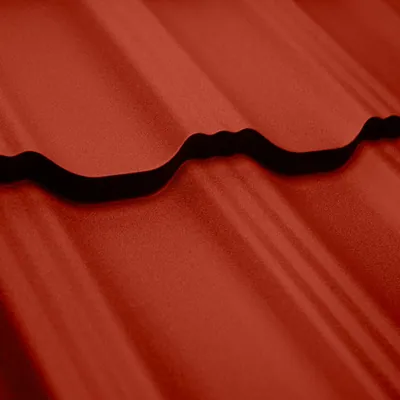

Red
RAL 3009
Terra Cotta
RAL 8004
Warranty
The coating on Mont Blanc carries a 45-year warranty from its manufacturer, covering the finish rather than the installation. Highland warrants its own workmanship separately, for 5 years. Ask for both sets of written terms when you discuss your roof, including what each one excludes and who to contact with a claim.

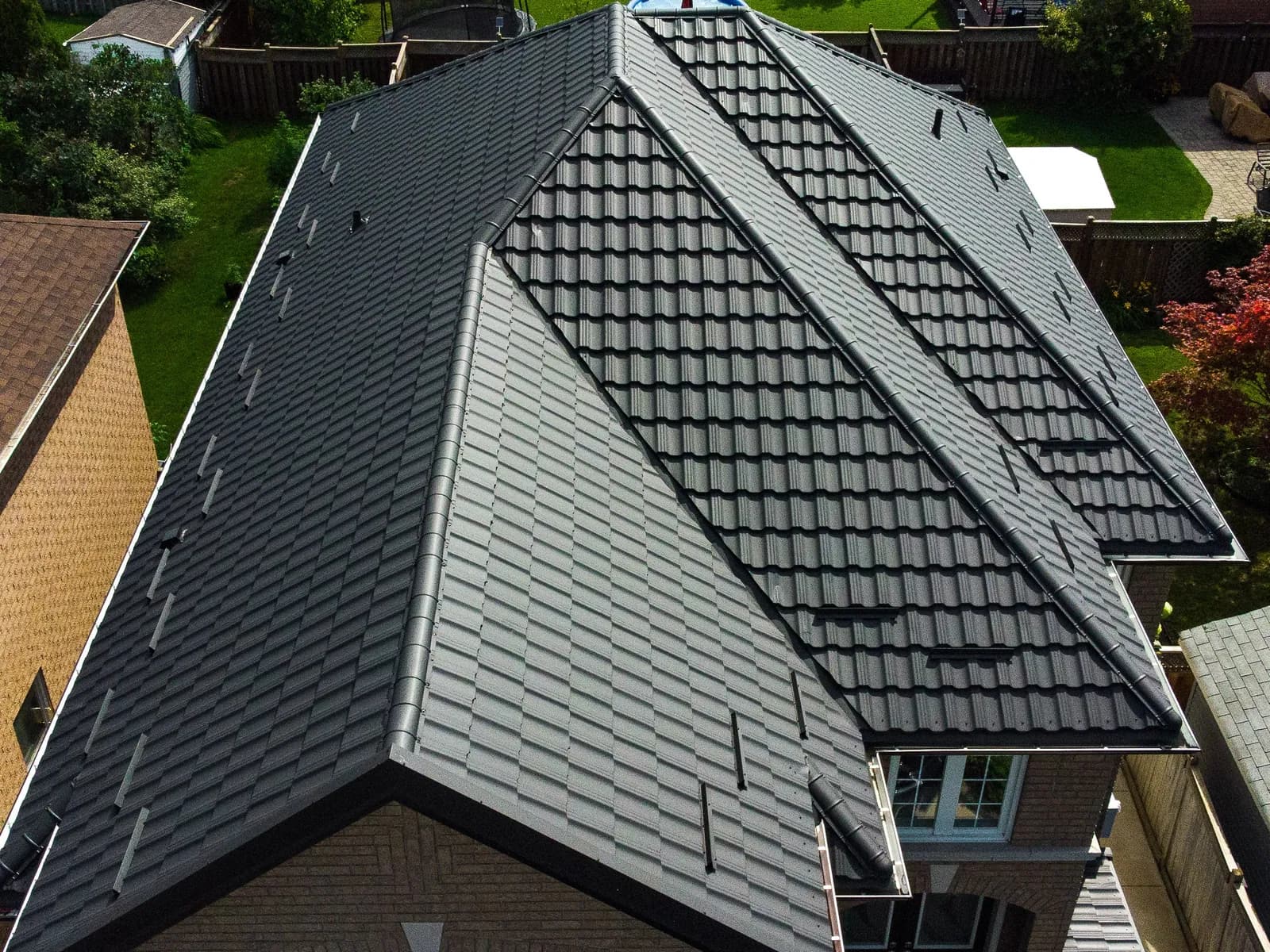

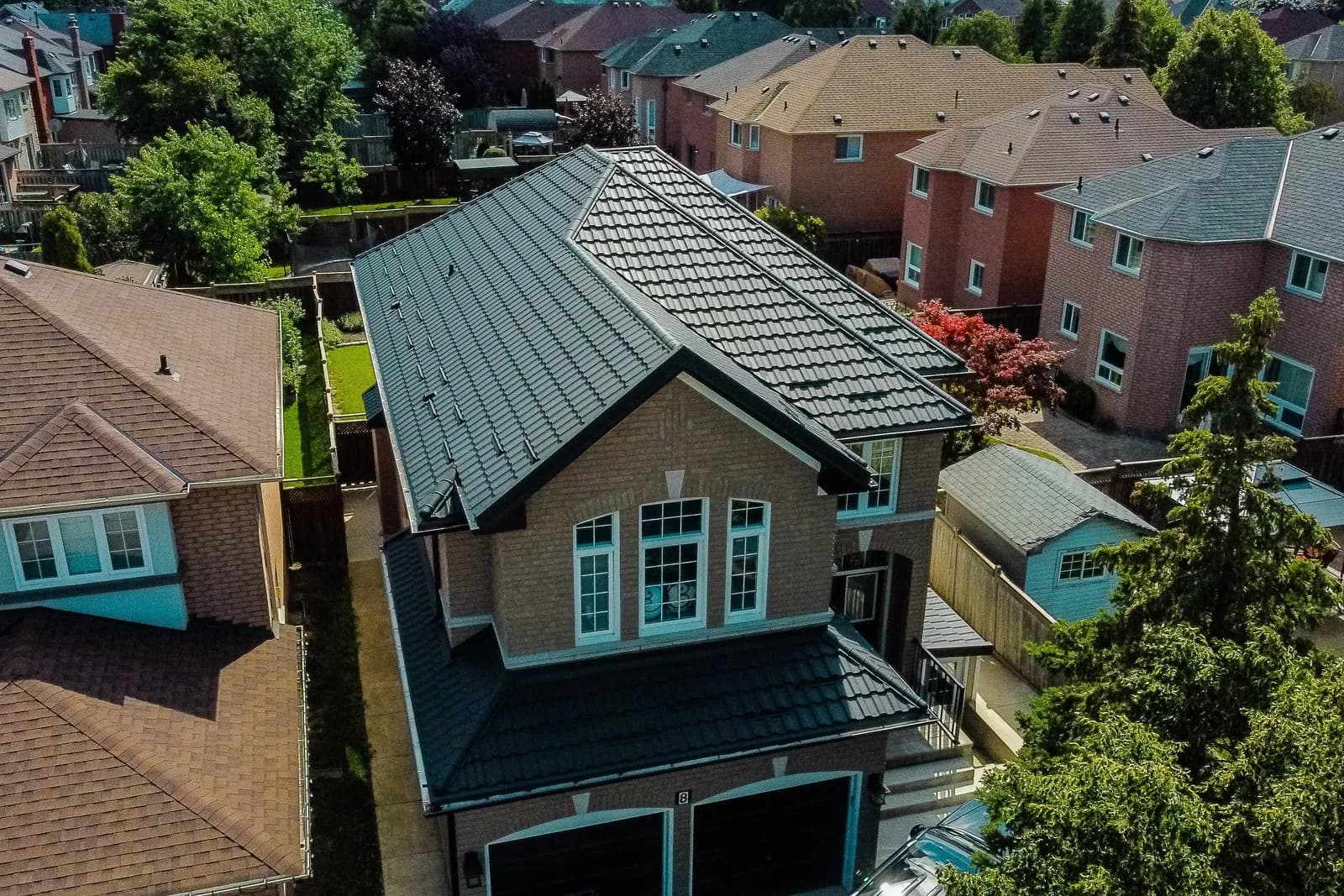

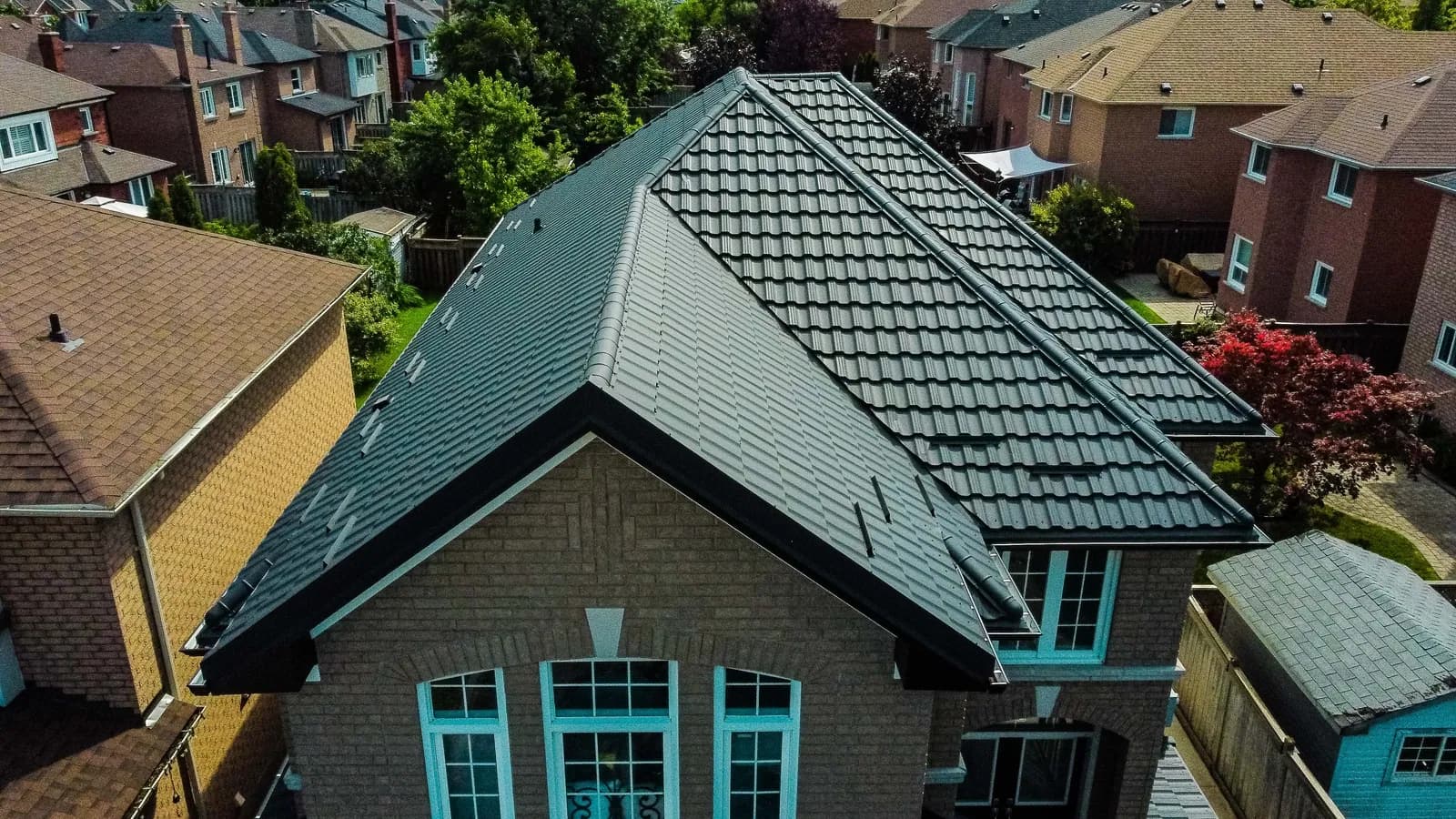

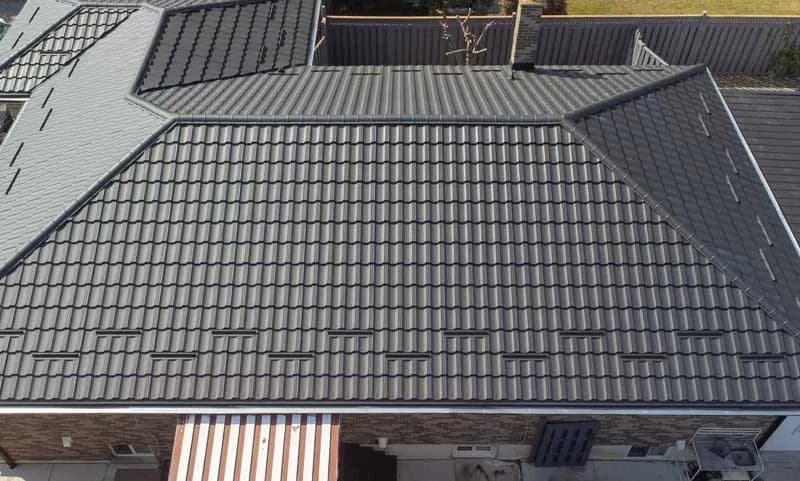

Mont Blanc on the roof
Planning a new roof with Mont Blanc? Request a free installation quote.
