Panel profile
Whistler
A tight repeat with a crisp edge, giving a more regular, closely spaced pattern across the slope.
Profile details

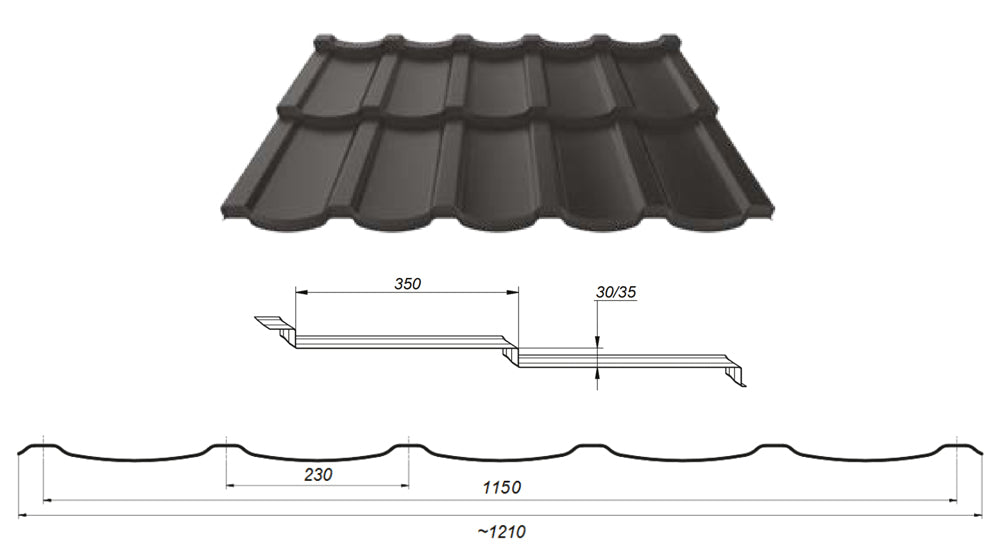

Drawings & dimensions
Explore the Whistler profile. Effective cover width is the width each panel covers after the side overlap.
| Measurement | mm | inches ≈ |
|---|---|---|
| Overall width | ≈ 1,210 | 47.64 |
| Effective cover width | 1,150 | 45.28 |
| Steel thickness | 0.5 | 0.020 |
| Rib pitch | 230 | 9.06 |
| Step height | 35 | 1.38 |
| Profile height | 19 | 0.75 |
| Module length | 350 | 13.78 |
| Minimum sheet length | 720 | 28.35 |
| Maximum sheet length | 5,970 | 235.04 |
Highland’s listed step height is 35 mm. The drawing also illustrates a 30 mm variant.
Inch values are approximate conversions. Confirm the profile, sheet length and selected variant with Highland for your project.
Available in 8 colours
Black
RAL 9005

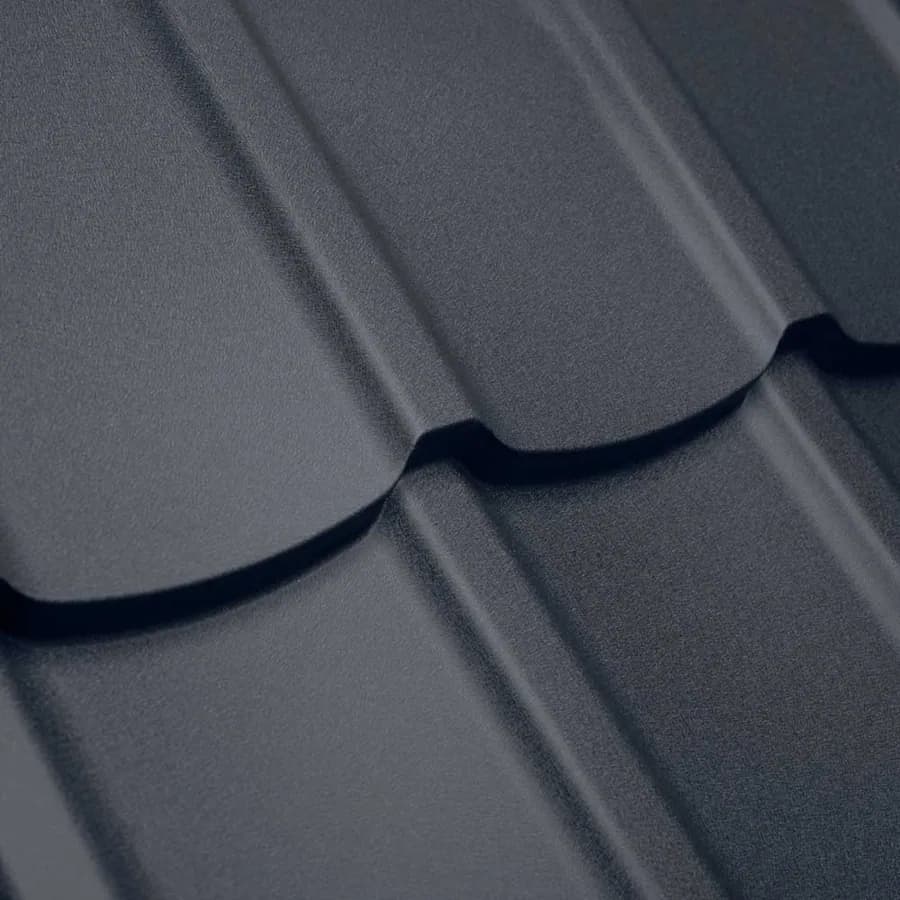

Blue Grey
RAL 7016

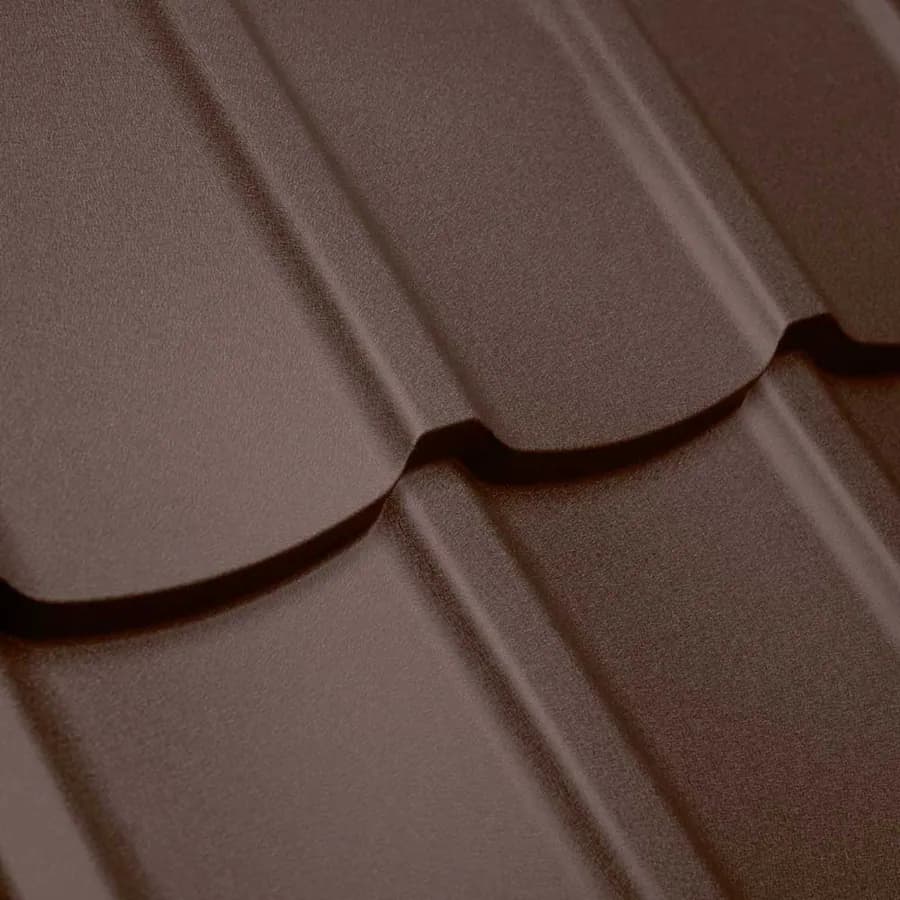

Chocolate
RAL 8017
Green
RAL 6020

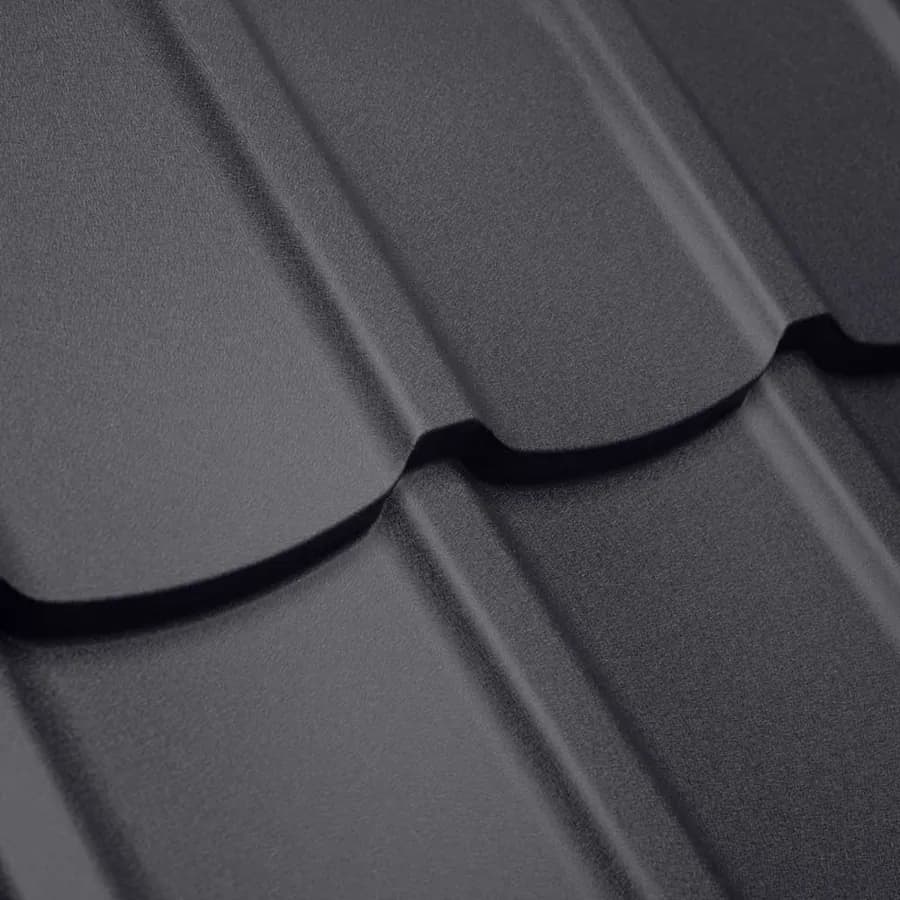

Grey
RAL 7024
Mocha Brown
RAL 8019

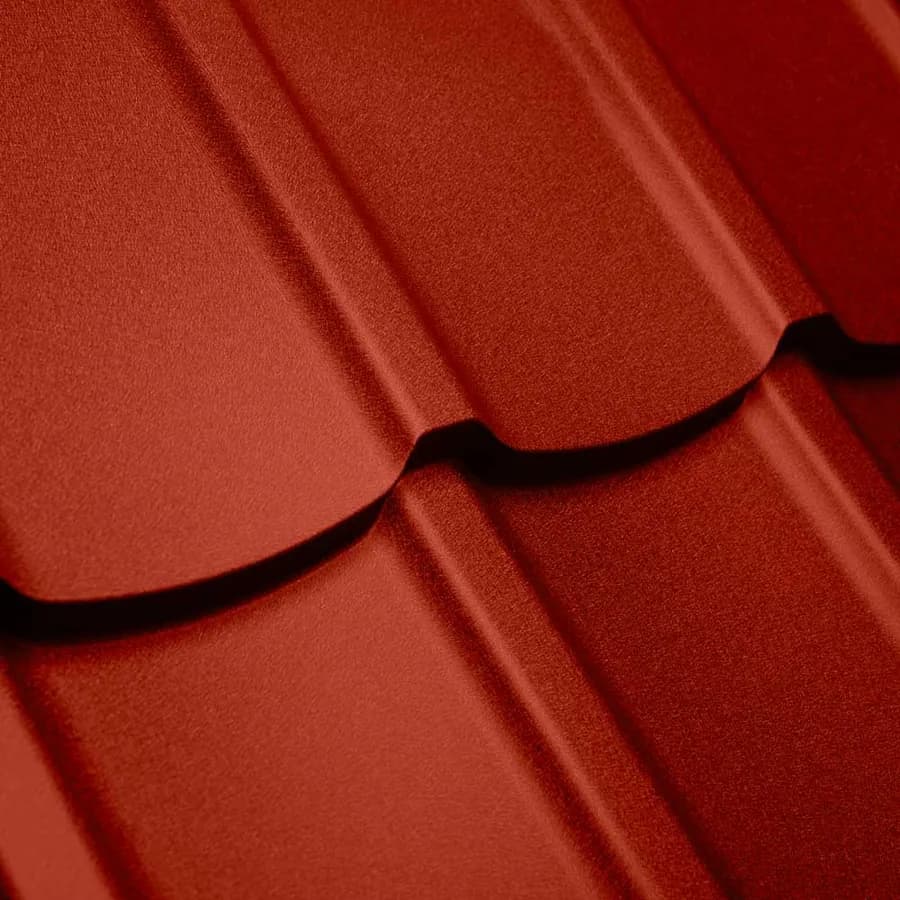

Red
RAL 3009

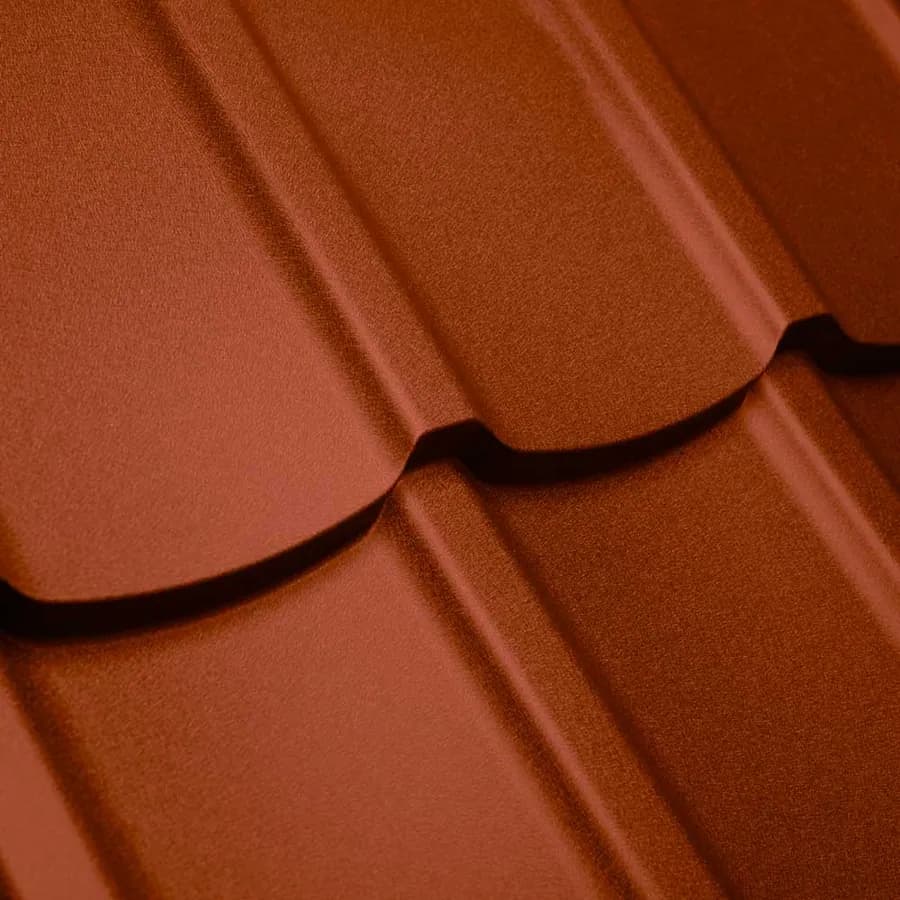

Terra Cotta
RAL 8004
Warranty
The coating on Whistler carries a 45-year warranty from its manufacturer, covering the finish rather than the installation. Highland warrants its own workmanship separately, for 5 years. Ask for both sets of written terms when you discuss your roof, including what each one excludes and who to contact with a claim.

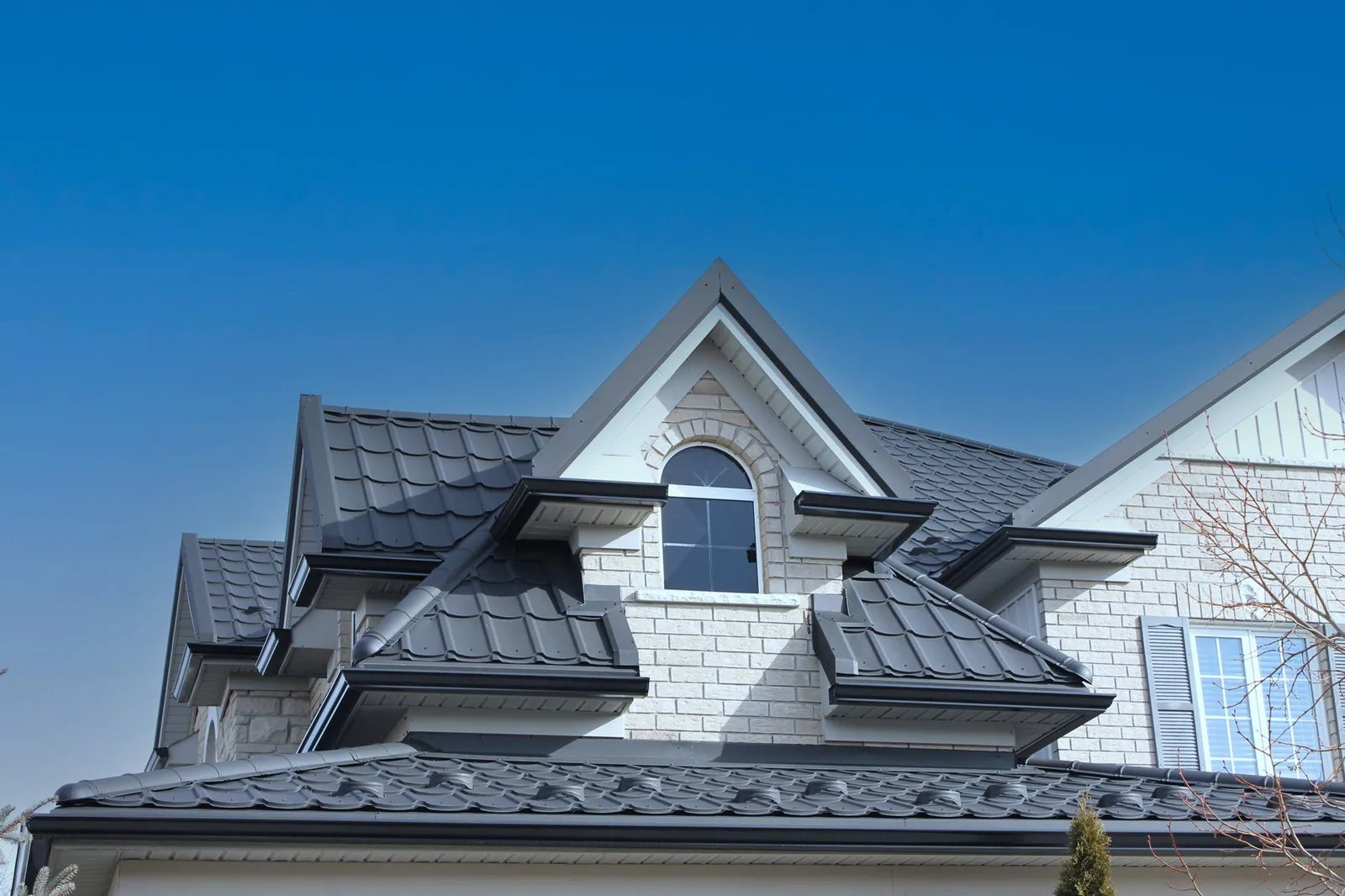

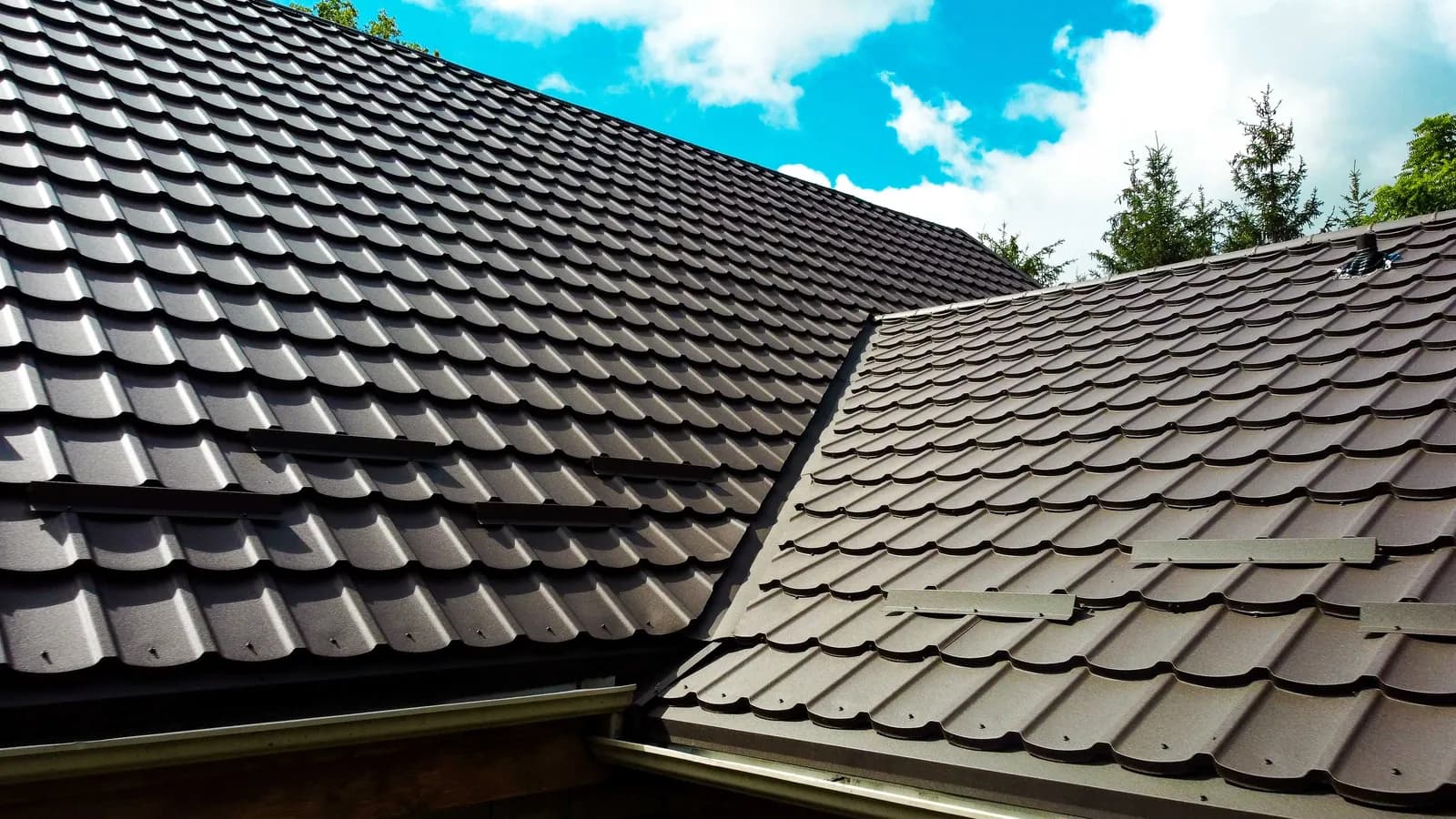

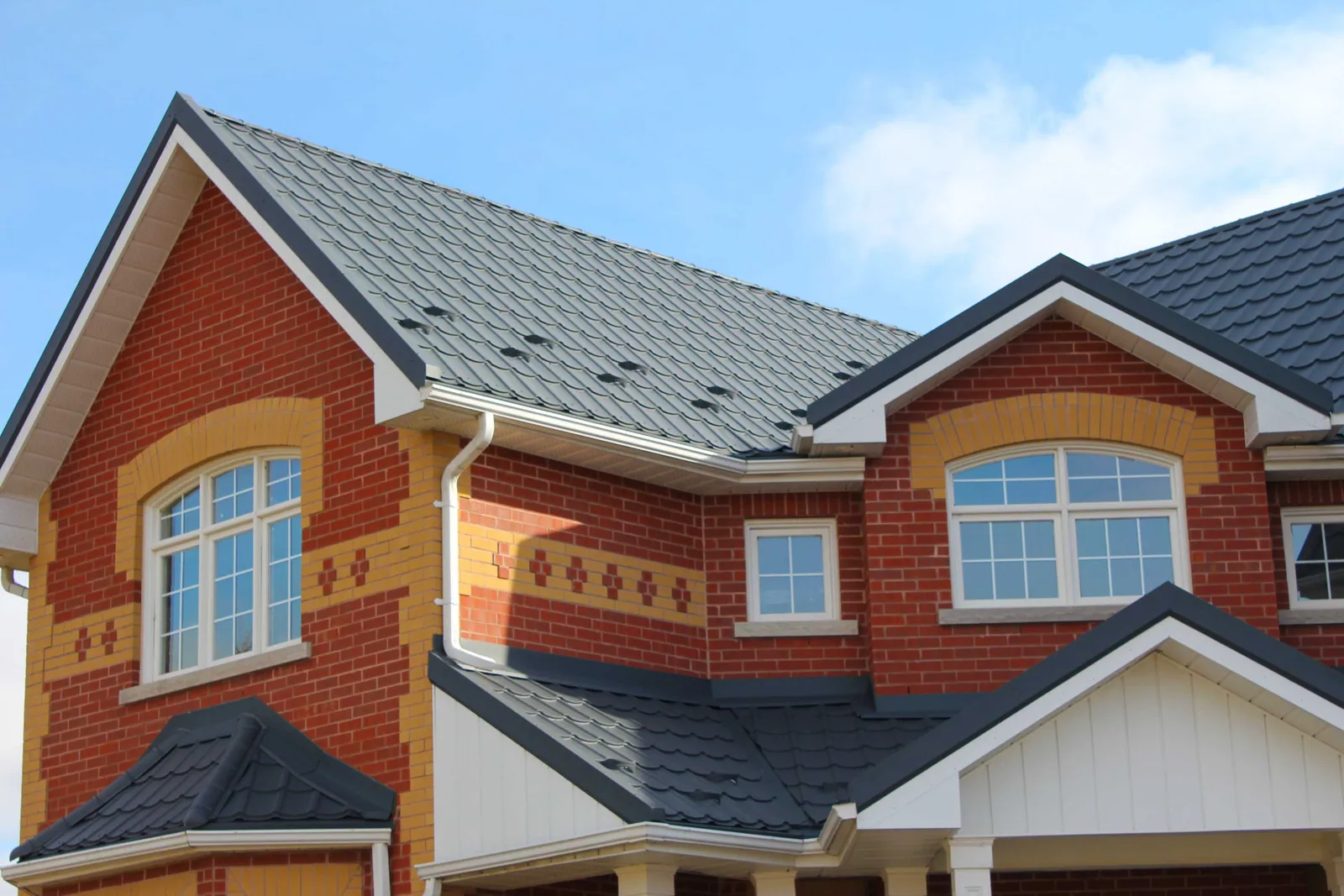

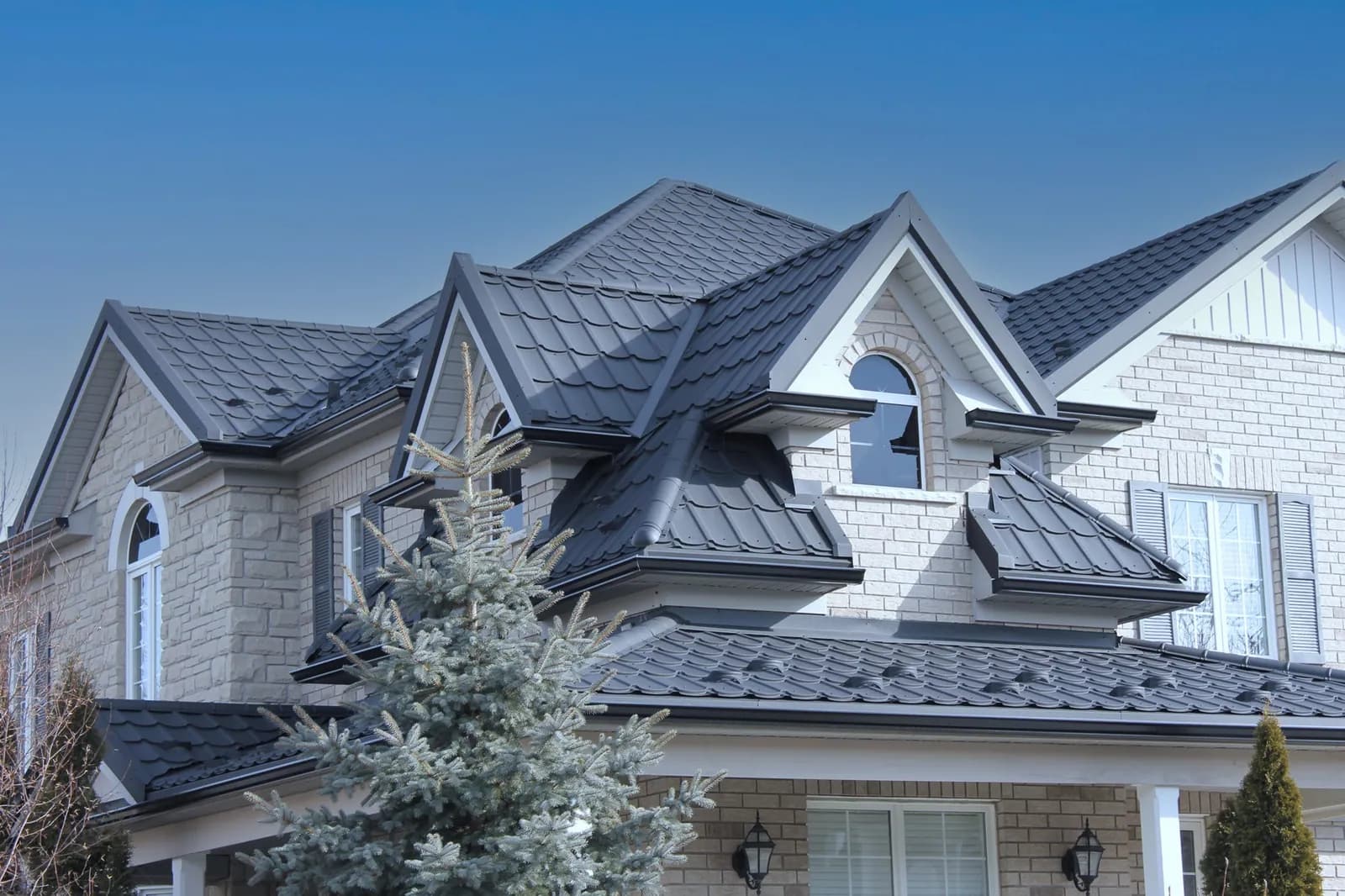

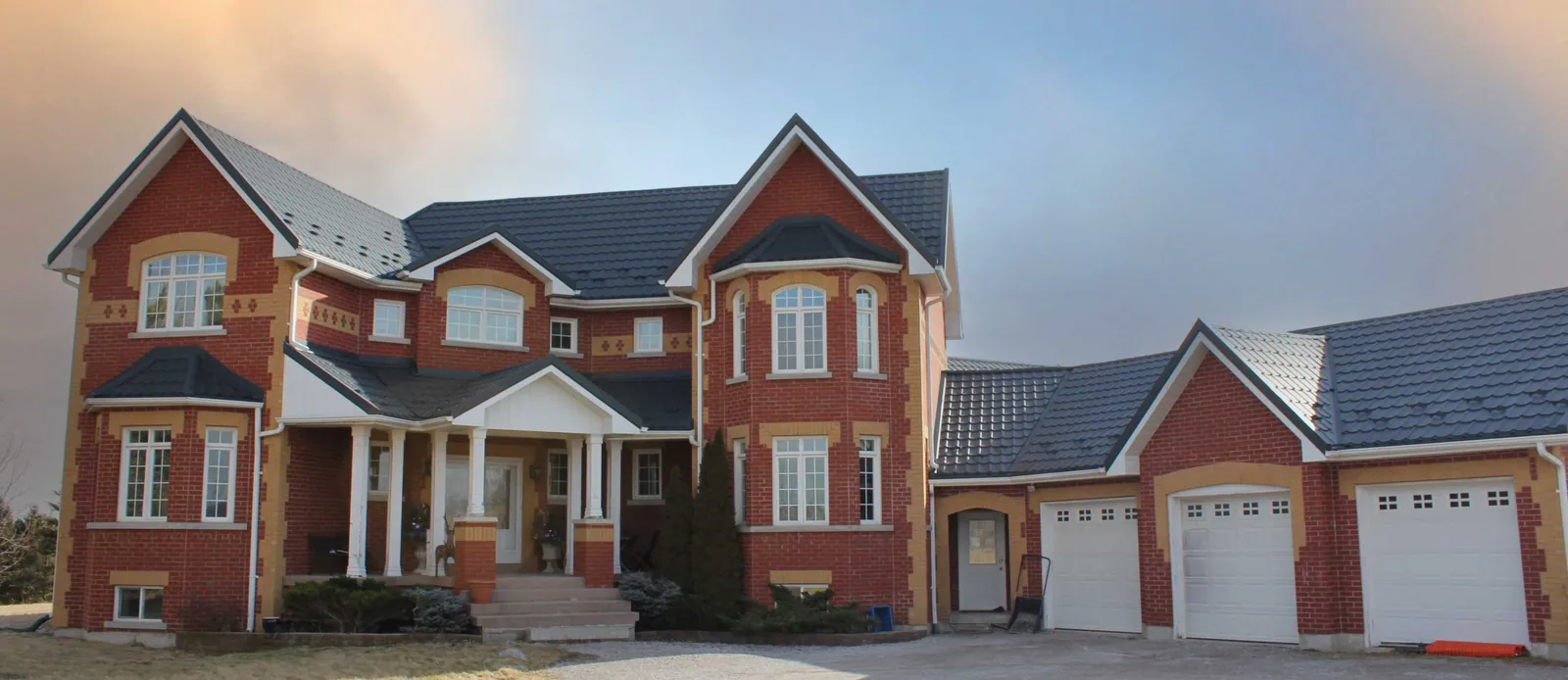

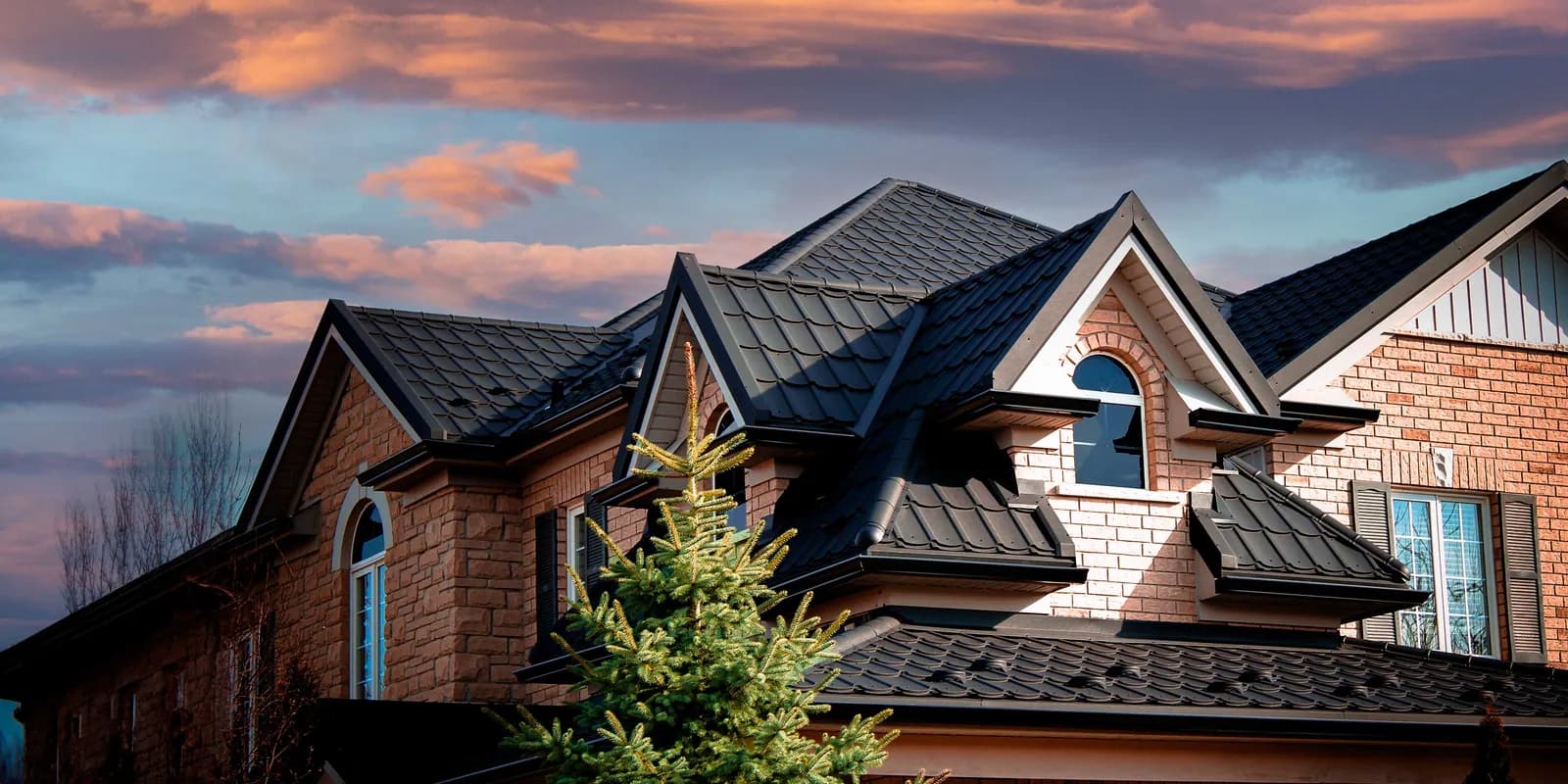

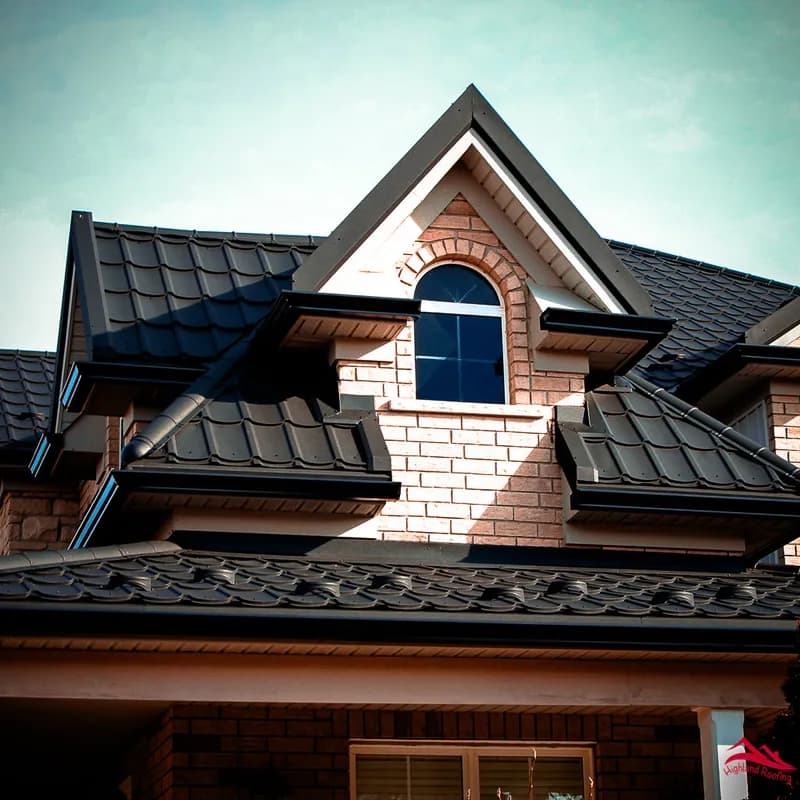

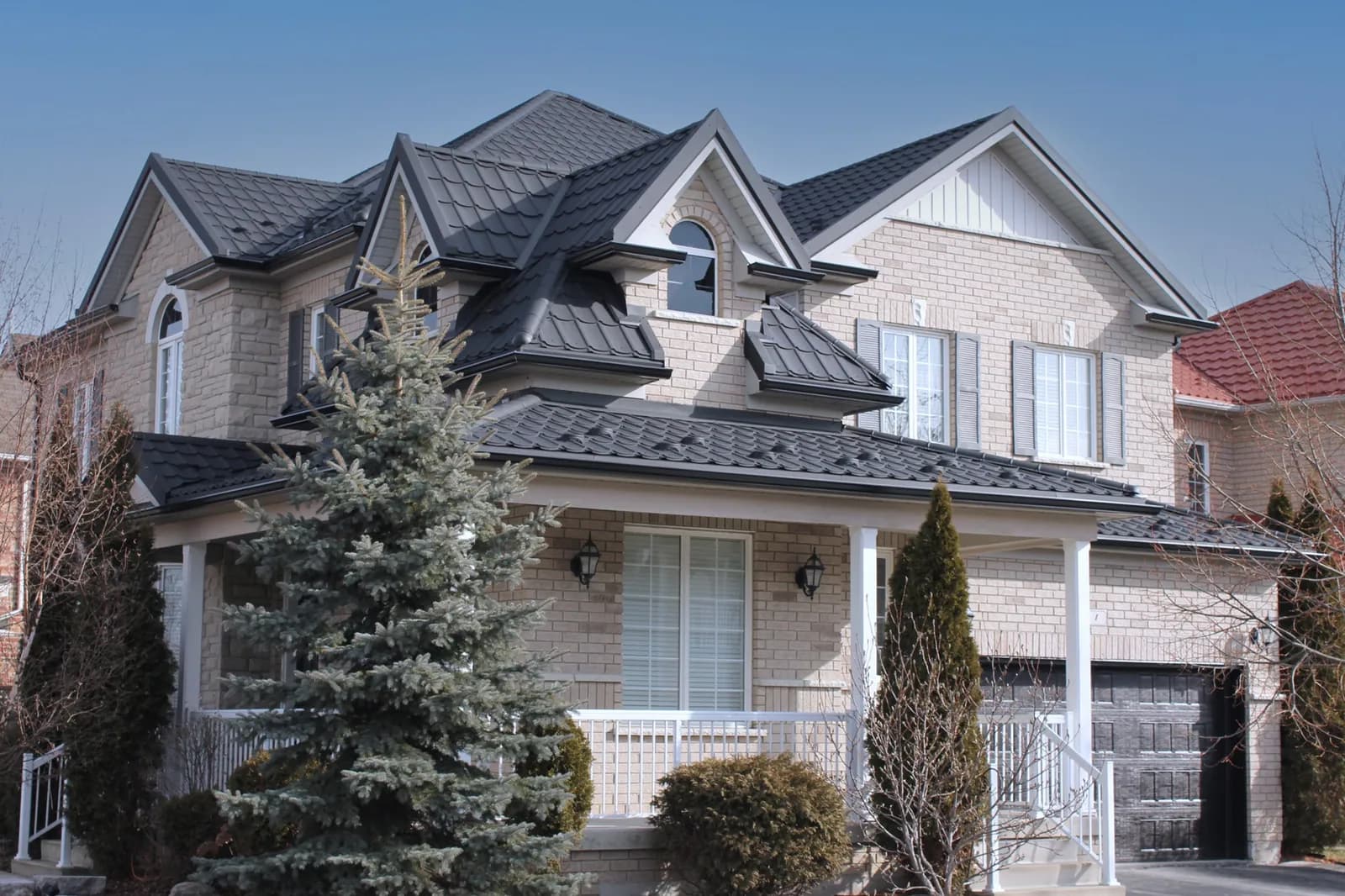

Whistler on the roof
Planning a new roof with Whistler? Request a free installation quote.
