Panel profile
Tremblant
A bolder step and a longer shadow line, which reads well on larger roofs with plenty of visible slope.
Profile details
Drawings & dimensions
Explore the Tremblant profile. Effective cover width is the width each panel covers after the side overlap.
| Measurement | mm | inches ≈ |
|---|---|---|
| Overall width | ≈ 1,200 | 47.24 |
| Effective cover width | 1,144 | 45.04 |
| Steel thickness | 0.5 | 0.020 |
| Rib pitch | 190.7 | 7.51 |
| Step heights shown | 29 / 40 | 1.14 / 1.57 |
| Profile height | 21 | 0.83 |
| Module length | 350 | 13.78 |

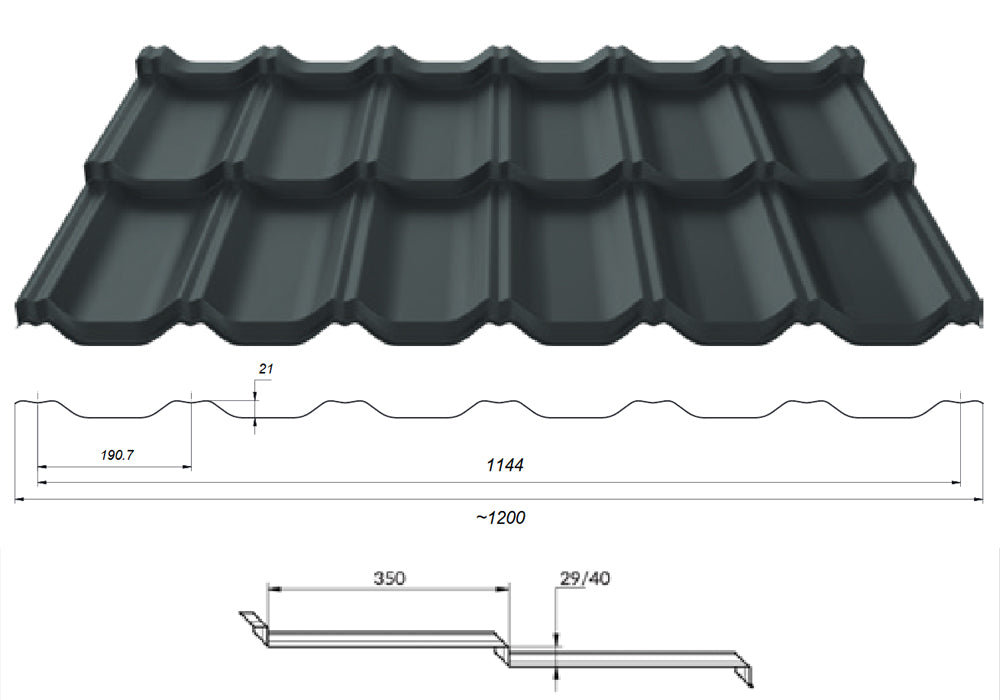

The drawing shows 29 mm and 40 mm step variants. Confirm the selected variant with Highland.
Inch values are approximate conversions. Confirm the profile, sheet length and selected variant with Highland for your project.
Available in 8 colours
Black
RAL 9005

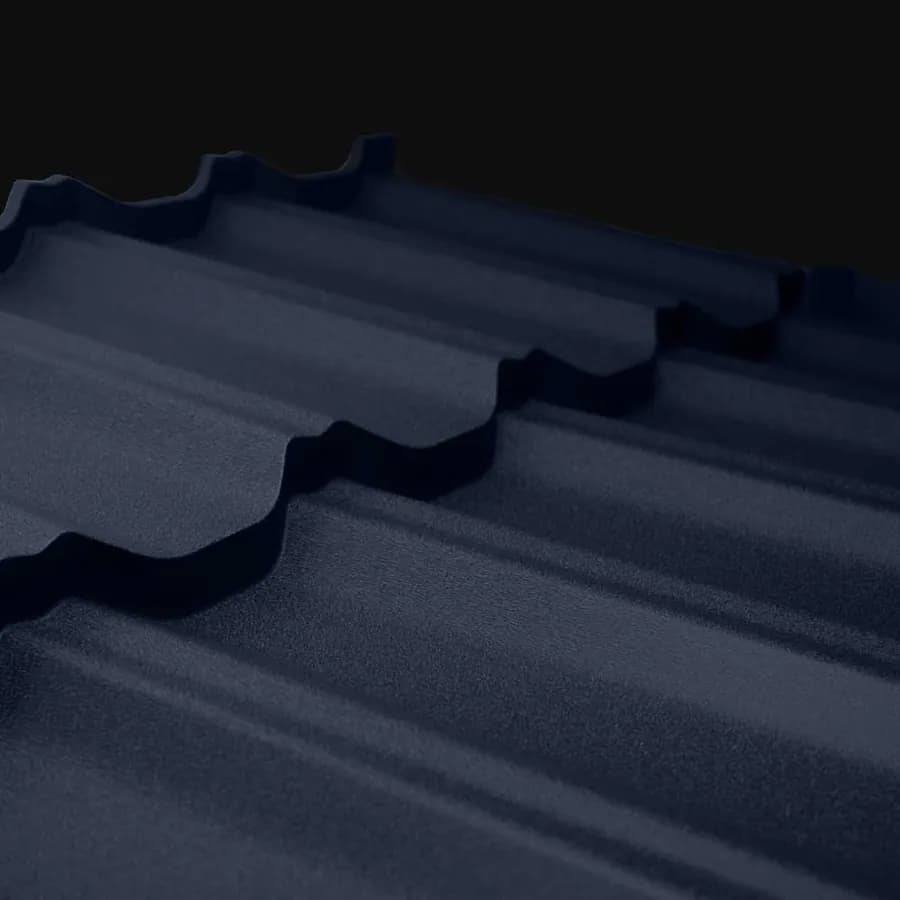

Blue Grey
RAL 7016
Chocolate
RAL 8017

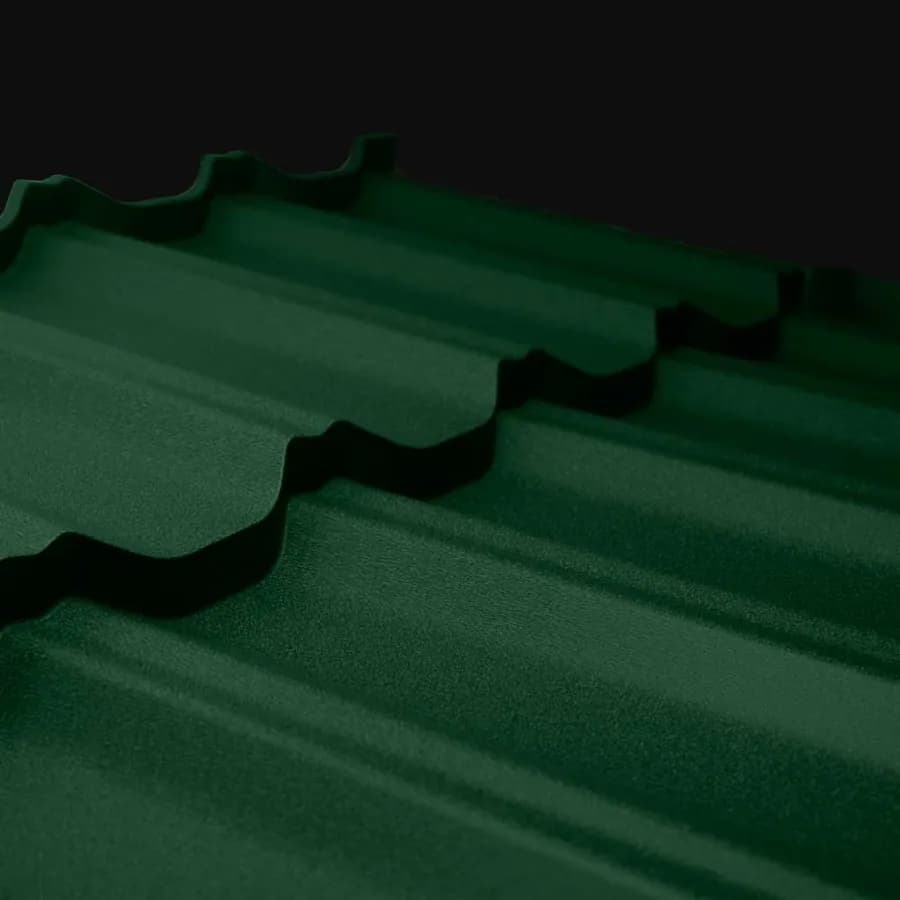

Green
RAL 6020
Grey
RAL 7024
Mocha Brown
RAL 8019

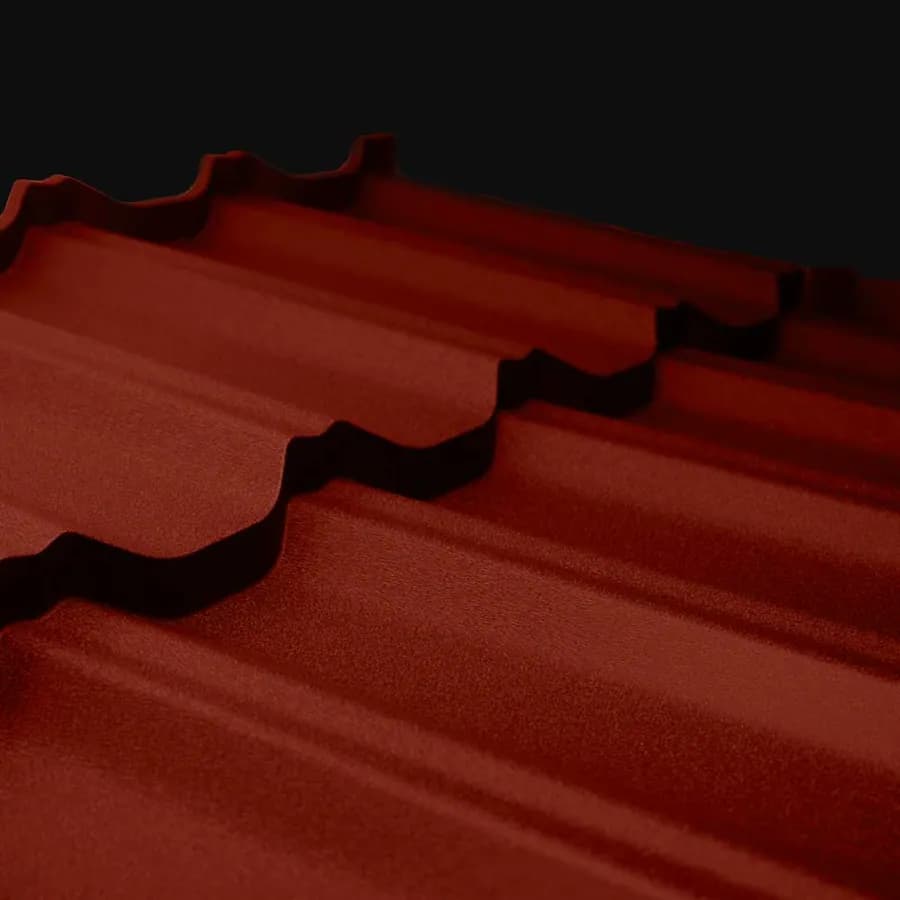

Red
RAL 3009
Terra Cotta
RAL 8004
Warranty
The coating on Tremblant carries a 45-year warranty from its manufacturer, covering the finish rather than the installation. Highland warrants its own workmanship separately, for 5 years. Ask for both sets of written terms when you discuss your roof, including what each one excludes and who to contact with a claim.

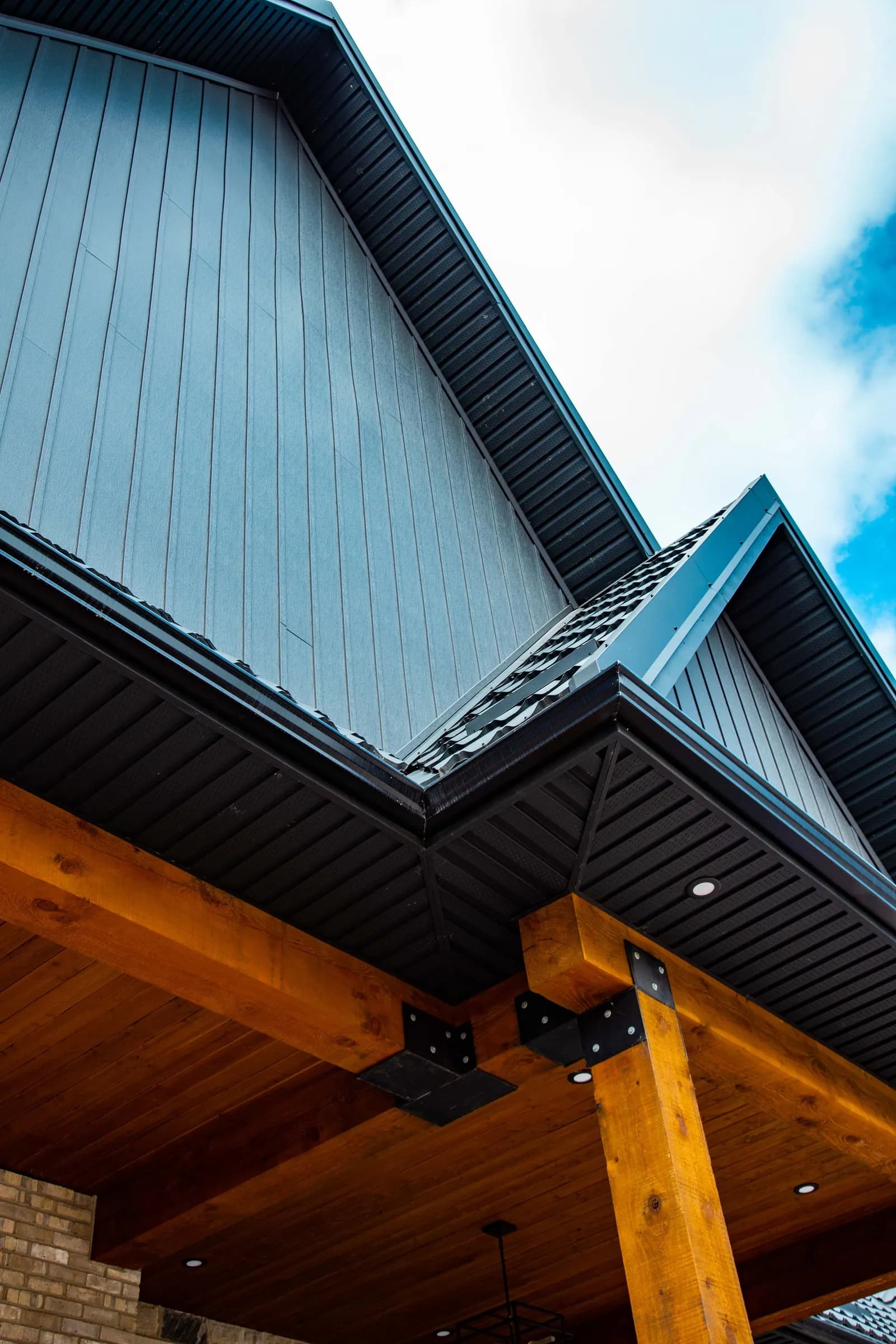

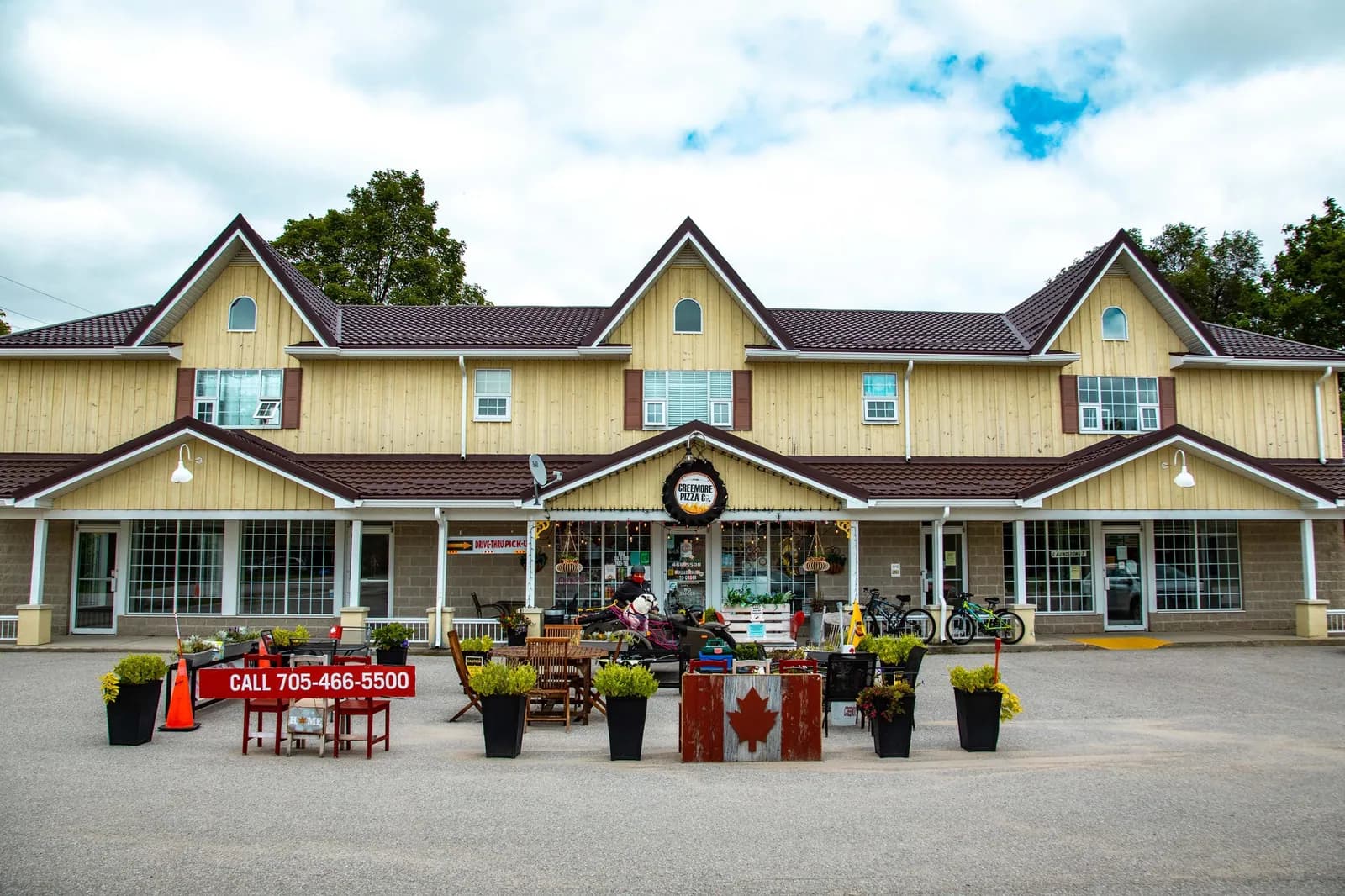

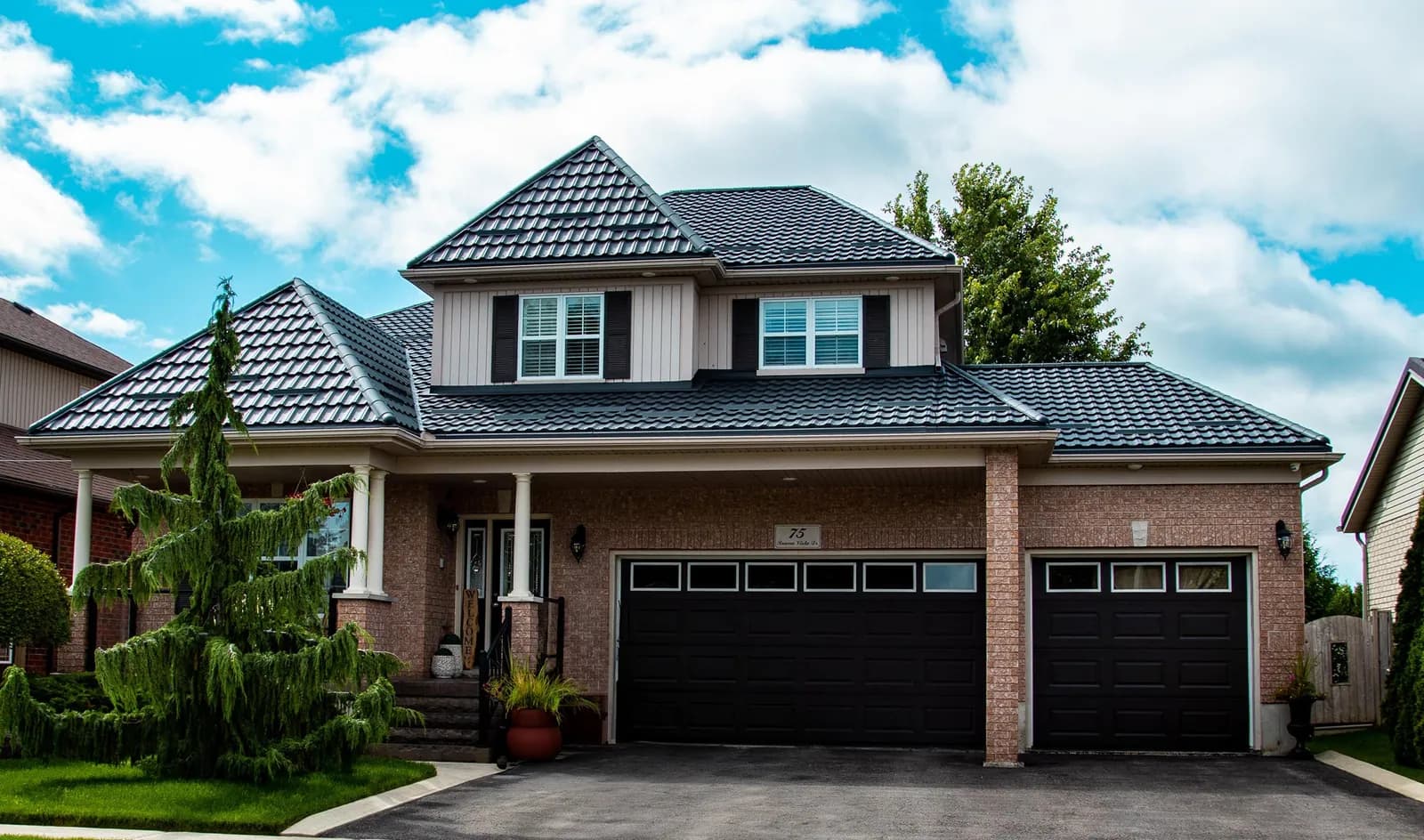

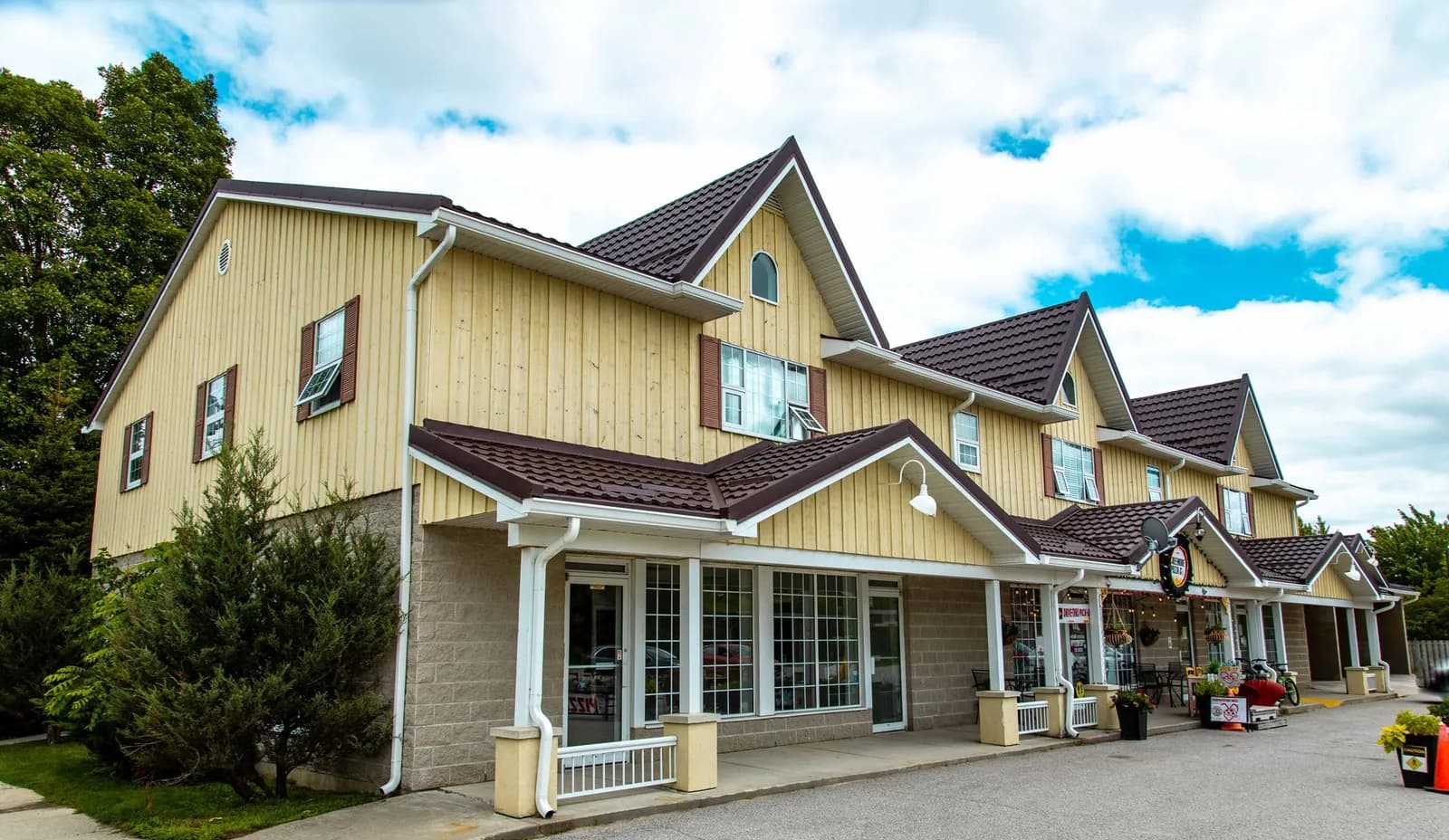

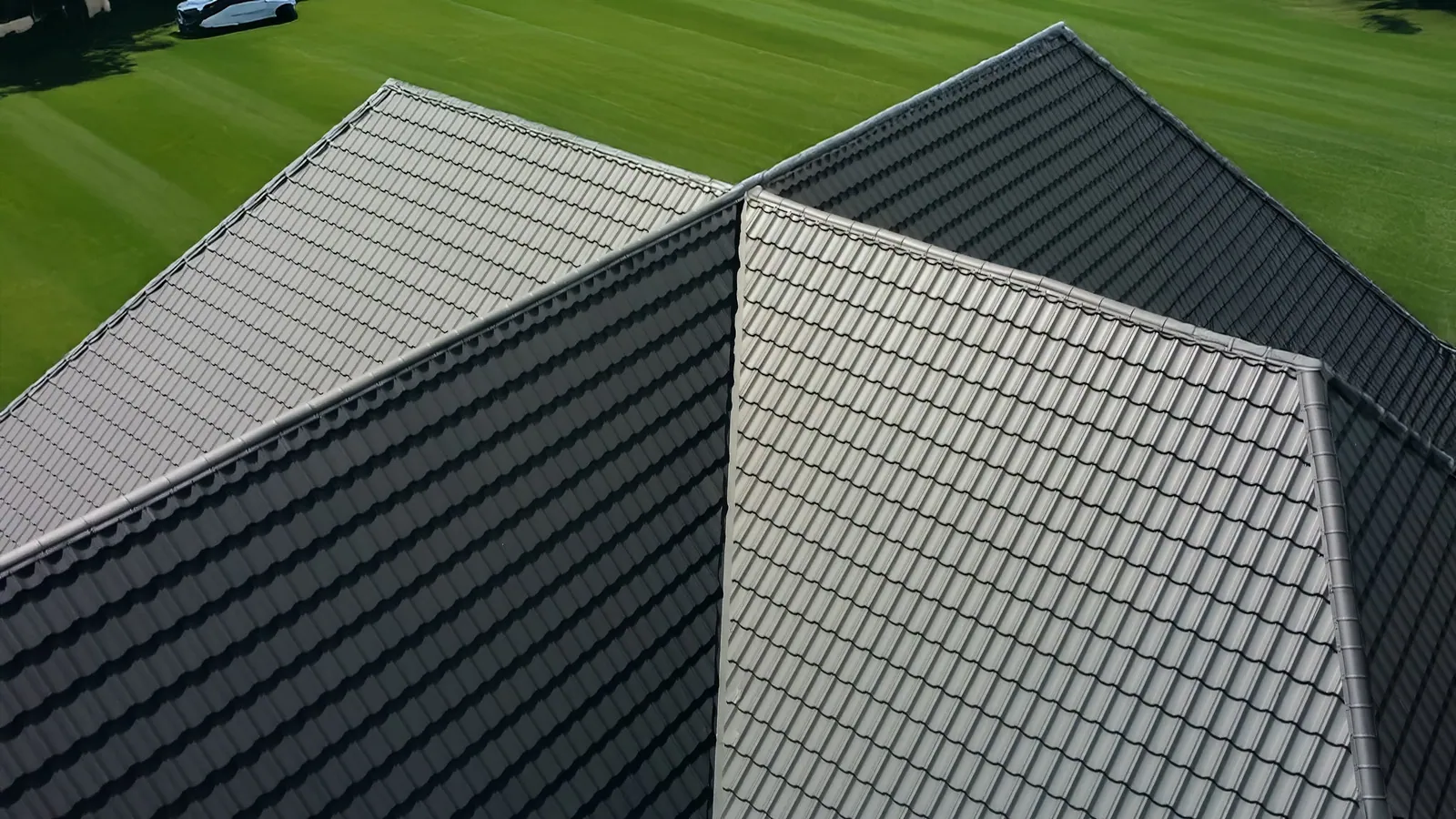

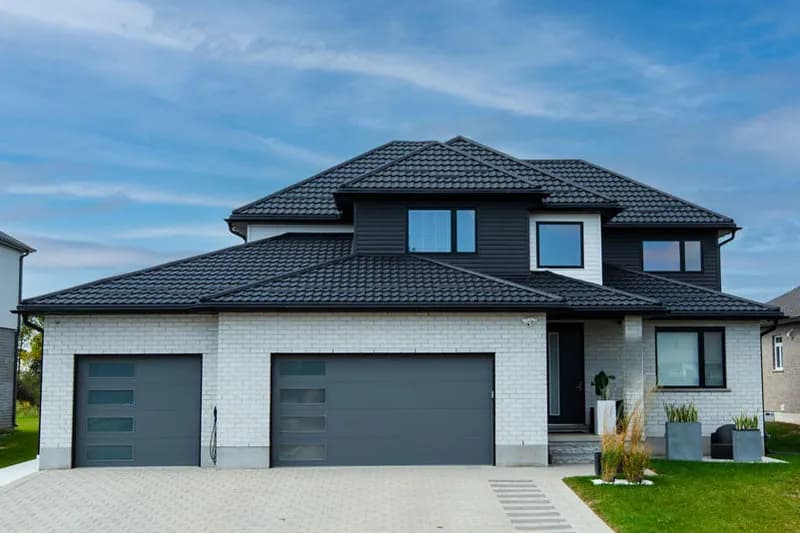

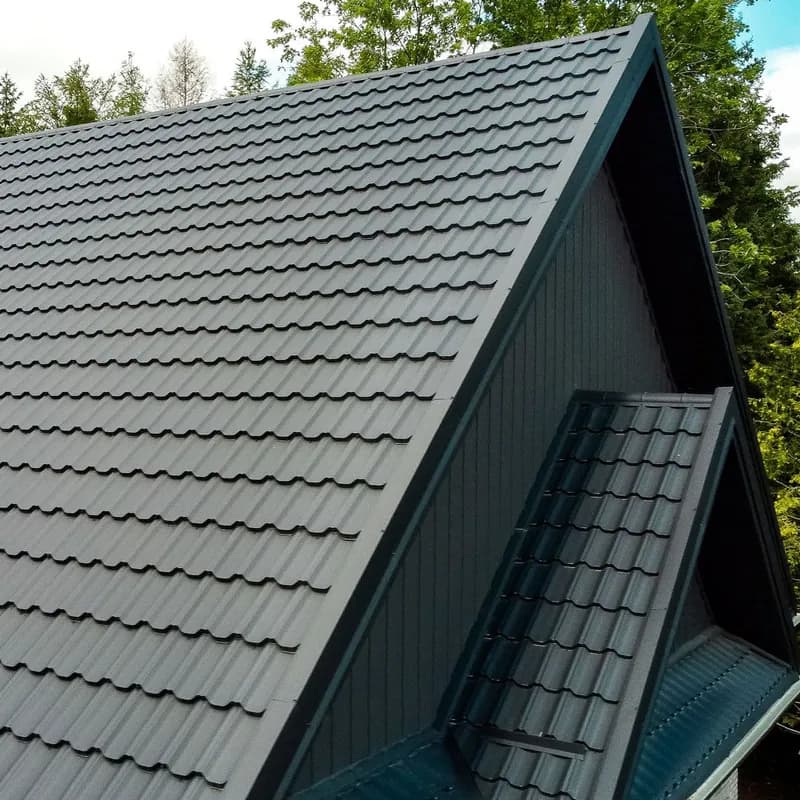

Tremblant on the roof
Planning a new roof with Tremblant? Request a free installation quote.
