Panel profile
Banff
Deep classic tile profile with a pronounced step — the shape most people picture when they picture a metal roof. Available in black only.
Profile details

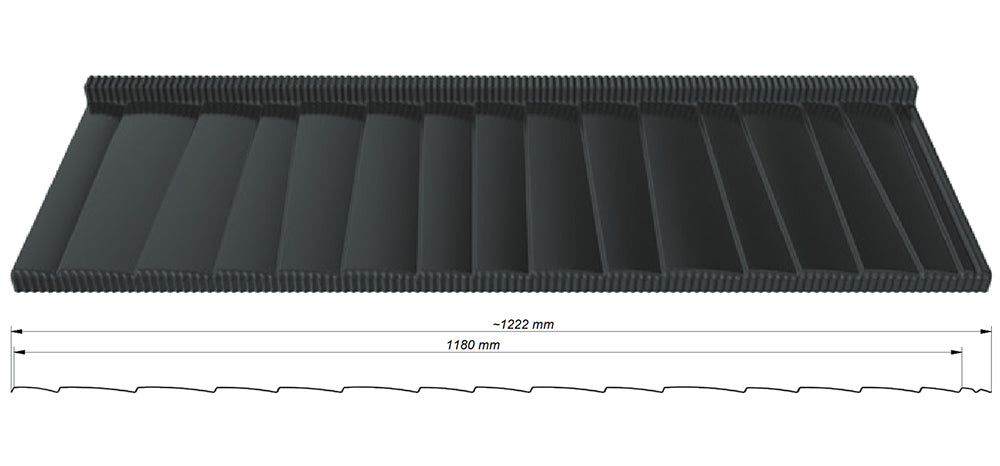

Drawings & dimensions
Explore the Banff profile. Effective cover width is the width each panel covers after the side overlap.
| Measurement | mm | inches ≈ |
|---|---|---|
| Overall width | ≈ 1,222 | 48.11 |
| Effective cover width | 1,180 | 46.46 |
| Steel thickness | 0.5 | 0.020 |
| Step height | 35 | 1.38 |
| Profile height | 6 | 0.24 |
| Module length | 380 | 14.96 |
Inch values are approximate conversions. Confirm the profile, sheet length and selected variant with Highland for your project.
Available in black only
Banff is supplied in black only. For other colours, explore the other profiles in our range.
Warranty
The coating on Banff carries a 45-year warranty from its manufacturer, covering the finish rather than the installation. Highland warrants its own workmanship separately, for 5 years. Ask for both sets of written terms when you discuss your roof, including what each one excludes and who to contact with a claim.

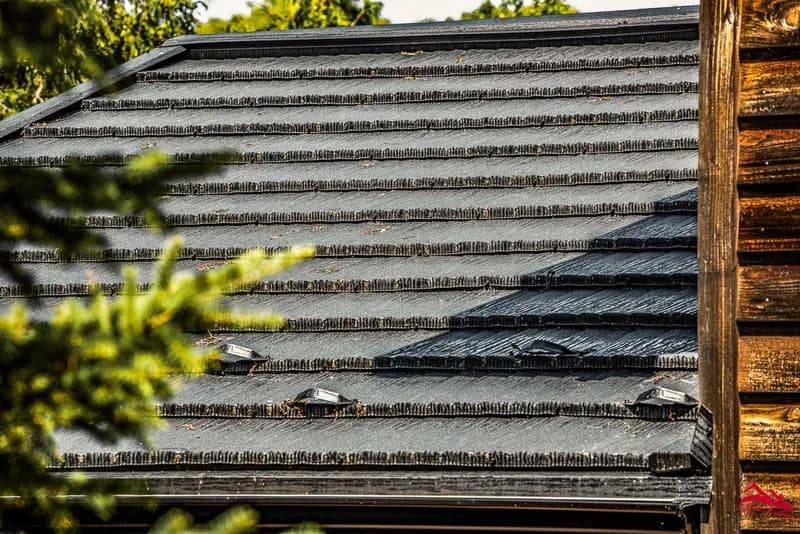

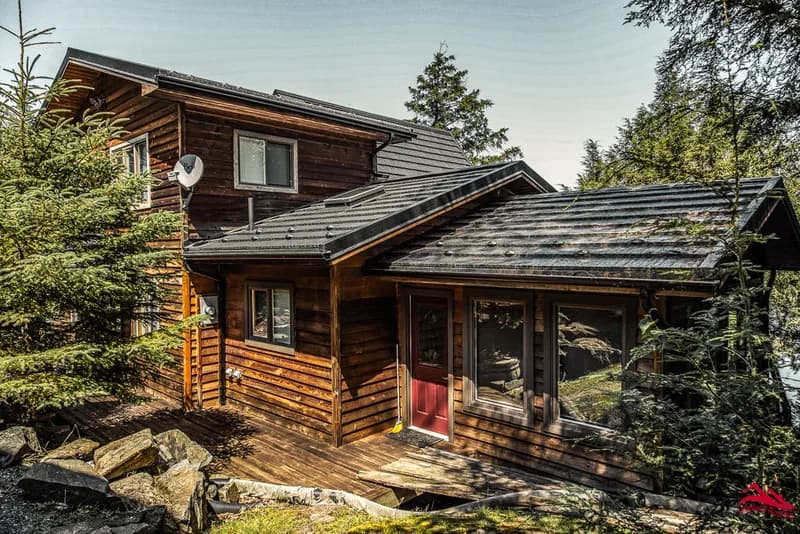

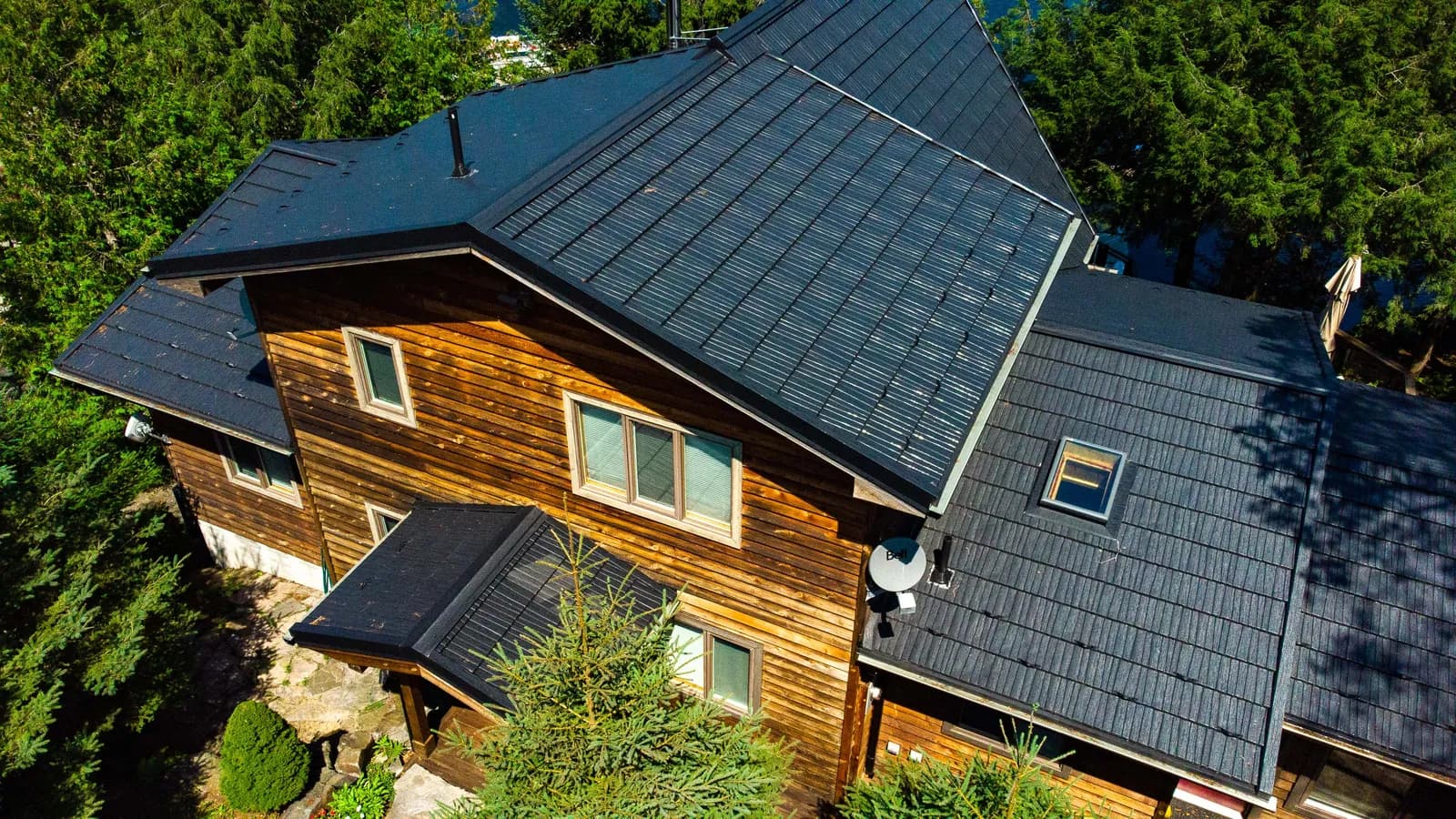

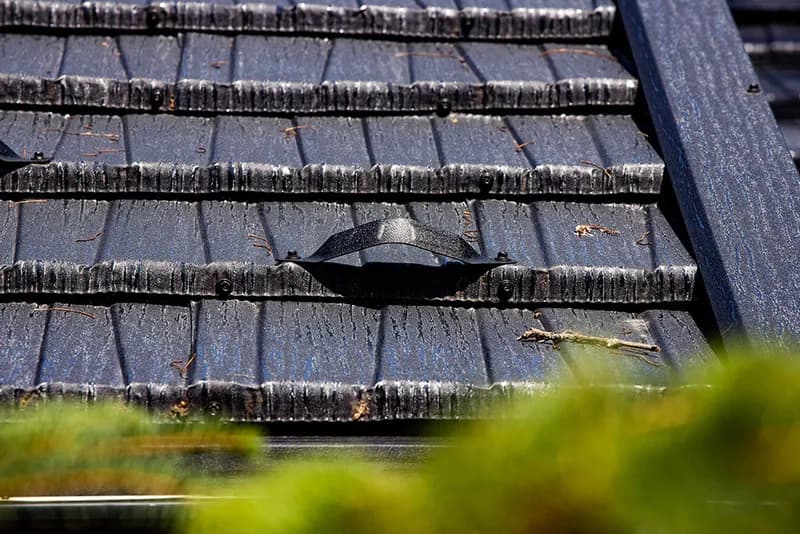

Banff on the roof
Planning a new roof with Banff? Request a free installation quote.
