Rainwater diverter
Diverts water from the downpipe toward a collection point.
A diverter introduces a collection point into the downpipe run. Its outlet can direct rainwater toward a suitable container. Collection, overflow and seasonal care need to be planned together.
Specialist option. Confirm availability, dimensions and compatibility with Highland for your project.
Rainwater diverter — dimensions
Match the letters in the drawing to the measurements below. System numbers identify the nominal size; use the listed measurements for the part itself.
| System | H |
|---|---|
| 90 | 376 mm |
| 100 | 376 mm |
| 120* | 400 mm |
The published 120* variant carries an asterisk without an accompanying note. Confirm that variant with Highland.
Dimensions are in millimetres unless marked otherwise. Confirm the selected size and adjoining fittings with Highland before ordering.
Choosing the right fitting
Describe the existing roofline or drainage connection and the fitting you need. Fixing surfaces and adjoining components help establish the appropriate option.

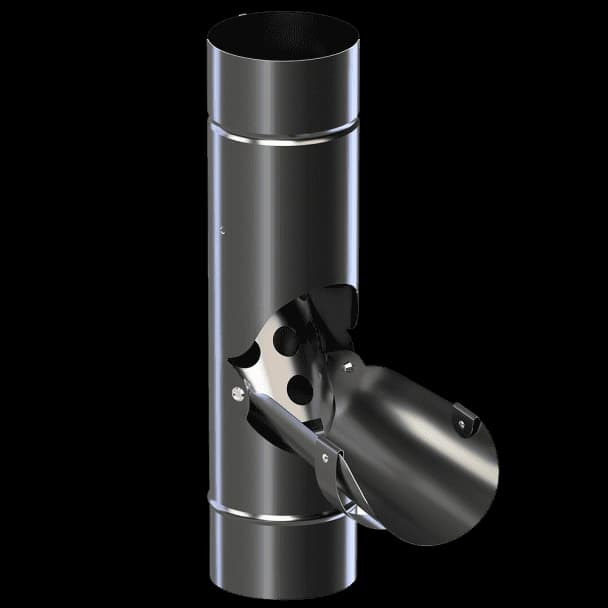

The 3D view illustrates the component’s form. Use the published dimensions and installation instructions for the actual work.
Part of a coordinated system.
The eavestrough system is modular and jointed. Gutters, corners and downpipes connect through fittings selected to work together.
The steel eavestrough system carries a 40-year warranty from the manufacturer. Highland’s 5-year workmanship warranty is separate. Ask for the written terms and confirm the cover for your chosen components, including specialist accessories.
